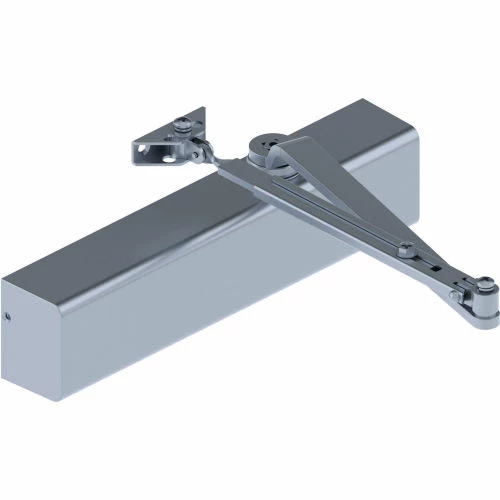

Hager Companies Hager 5200 Series Door Closer 5200 MLT 1-6 ALM DLY

Features

• Lifetime warranty
• Standard package contains 5201 closer body, 5202 closer cover, 5203 main arm assembly, 5204 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4 (44 mm) door
• Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 5 – Standard
• ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 – Optional, UL/cUL Listed for up to 3 hours, UL10C Positive Pressure Rated, UL10B Neutral Pressure Rated
• Materials: Aluminum alloy
• Cover: Full plastic cover – Standard, Full size plated metal cover – Optional, Slim line plastic cover – Optional
• Springs: Double heat treated steel, tempered springs
• Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve – Standard, Delayed action valve – Optional, Staked valves – Standard
• Handing: Non-handed
• Arms & Brackets: Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount – Standard
• Door Thickness: 1-3/4 (44 mm) – Standard, 1-3/8 – 2-1/4 (36 mm – 57 mm) thick door – Optional
• Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
• Finishes: ALM, BRZ, DBZ, GOL, US3, US26, US26D, Rust inhibiting primer – Standard
• Notes: Full rack and pinion operation, Precision machined, heat treated steel piston
• Triple heat treated steel spindle
