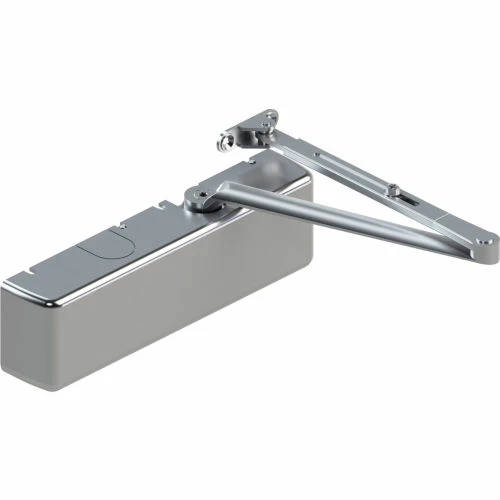

Hager Companies Hager 5100 Series Door Closer 5100 MLT 1-6 ALM DLY

Features

• Lifetime warranty
• Standard package contains 5101 closer body, 5102 closer cover, 5103 main arm assembly, 5104 standard screw pack, 5909 parallel arm bracket, and 5940 SNB screw pack for 1-3/4 (44 mm) doors
• Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 – Standard
• ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 – Optional UL/cUL Listed for up to 3 hours, UL10C Positive Pressure Rated UL10B Neutral Pressure Rated
• Materials: Cast iron
• Cover: Full plastic cover – Standard,Plated metal cover – Optional
• Springs: One piece seamless steel spring tube, Double heat treated steel, tempered springs
• Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve – Standard, Delayed action valve – Optional, Staked valves – Standard
• Handing: Non-handed
• Arms & Brackets: Tri-Pack: Regular, Parallel Arm, Top Jamb Mount – Standard
• Door Thickness: 1-3/4 (44 mm) – Standard, 1-3/8 – 2-1/4 (36 mm – 57 mm) thick door – Optional
• Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
• Finishes: ALM, BRZ, DBZ, GOL, US3, US26, US26D, Rust inhibiting primer – Standard
• Notes: Full rack and pinion operation, Precision machined, heat treated steel piston
• Triple heat treated steel spindle
