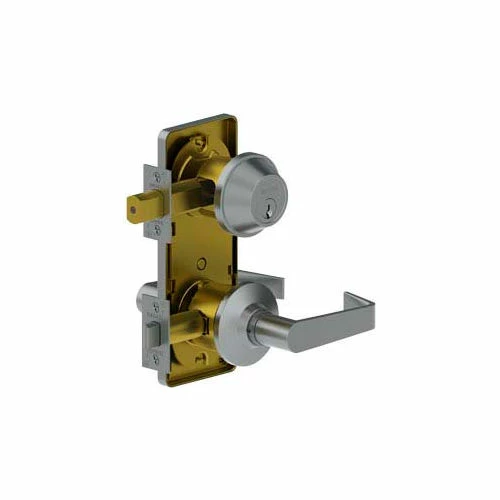

Hager Companies 3710 Grade 2 Interconnected Lock – Interconnected Single Locking Entry 2-3/4" Us26d Wtn Scc Kd Tee

Features

• Lifetime warranty
• Cylindrical chassis
• No exposed mounting screws
• Non-handed
• Conventional cylinder or Small Format Interchangeable Core housings available
• Standard Door Prep: , 4 (102 mm) center of deadbolt to center of lock chassis, 2-1/8 (54 mm) Diameter (Cross Bore), Latch Hole: 1 (25 mm) Diameter (Edge Bore)
• Certifications: BHMA Certified ANSI A156.12 Grade 2, ADA Compliant ANSI A117.1 Accessibility Code, UL/cUL Listed for all functions up to 3 hours for A label single doors UL10C/UBC 7-2 (1997) Positive Pressure Rated UL10B Neutral Pressure Rated
• Exposed Trim: Wrought Brass or Bronze, cast zinc leverLock Chassis: Heavy gauge steel, zinc dichromated, Thru-bolt mounting
• Rose Diameter: 2-1/2 (63 mm)
• Outside Escutcheon:3-5/16 x 7-15/16 x 3/8 (84 mm x 202 mm x 10 mm) Inside Escutcheon:3-1/16 x 7-15/16 x 1/8 (78 mm x 202 mm x 3 mm)Keys: Two operating keys supplied per lock
• Cylinders/Cores: Brass – Keyed Different – C Keyway, Drilled 6-pin, keyed 5-pin – Standard,Other keying options, including keyed 6-pin, available from the factory, Small Format Interchangeable Core housing available, SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
• Door Thickness: 1-3/8 – 1-3/4 (35 mm – 45 mm) – Standard, 2 (52 mm) Doors – Optional
• Backsets:2-3/4 (70 mm) – Standard 2-3/8 (60 mm) – Optional
• Latchbolt: 1/2 (13 mm) Throw – Stainless Steel, 1-1/8 x 2-1/4 (29 mm x 57 mm) Faceplate for 2-3/4 (70 mm) backset
• 1 x 2-1/4 (25 mm x 57 mm) Faceplate for 2-3/8 (60 mm) backset
• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only Square corner faceplate standard, round corner available
• Deadbolt: 1 (25 mm) Throw – brass with concealed steel roller to prevent sawing or cutting, 1-1/8 x 2-1/4 (29 mm x 57 mm) faceplate for 2-3/4 (70 mm) bracket, 1 x 2-1/4 (25 mm x 57 mm) faceplate for 2-3/8 (60 mm) faceplate
• Strikes: 3933 Square Corner T-Strike with Plastic Dust Box, 1-1/8 x 2-3/4 (29 mm x 70 mm) Standard, 3930 Square Corner Strike Plate with Dust Box,1-1/8 x 2-3/4 (29 mm x 70 mm) – Standard
• Functions: 10 Single Locking Entry, 53 Double Locking Entry
• Finishes: US3, US4, US10, US10B, US26, US26D
• Lever Options: Archer, August, Withnell levers
• Options: Split finish, Split lever design
