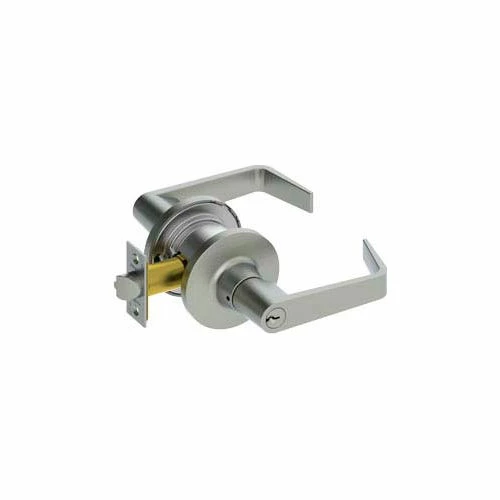

Hager Companies 3680 Grade 2 Tubular Lock – Storeroom Adj 2-3/8" – 2-3/4" Us3 Wtn Scc Kd Asa

Features

• Five-year warranty
• No exposed mounting screws
• Non-handed
• Conventional cylinder or Small Format Interchangeable Core housing available
• Standard Door Prep: 2-1/8 (54 mm) Diameter (Cross Bore), Latch Hole: 1 (25 mm) Diameter (Edge Bore)
• Certifications: BHMA Certified ANSI A156.2 Series 4000 Grade 2, ADA Compliant ANSI A117.1 Accessibility CodeUL/cUL Listed for all functions up to 3 hours for A label single doors, UL10C/UBC 7-2 (1997) Positive Pressure Rated, UL10B Neutral Pressure Rated
• Exposed Trim: Levers: Cast Zinc Rose: Wrought brass
• Rose Diameter: 2-15/16 (75 mm)
• Lock Chassis: Heavy gauge steel, zinc dichromated
• Keys: Two operating keys supplied per lock
• Cylinders/Cores: Brass – Keyed Different – C Keyway Drilled 6-pin, keyed 5-pin – Standard Other keying options, including keyed 6-pin, available from the factory
• Small Format Interchangeable Core housing available SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
• Door Thickness: 1-3/8 – 1-3/4 (35 mm – 45 mm)
• Backset: Adjustable 2-3/8 – 2-3/4 (60 mm – 70 mm), Preset at factory for 2-3/8 (60 mm)
• Latchbolt: 1/2 (13 mm) Throw – Stainless Steel, 1 x 2-1/4 (25 mm x 57 mm) Faceplate Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only Square corner faceplate standard, round corner available
• Strike: 3935 ASA 1-1/4 x 4-7/8 (32 mm x 124 mm) strike – Standard
• Functions: 10 Passage, 17 Dummy, 40 Privacy, 53 Entry, 70 Classroom, 80 Storeroom
• Finishes: US3, US4, US10, US10B, US26, US26D
• Lever Options: Archer, August, Withnell levers
• Options: Tactile Warning, Split finish
