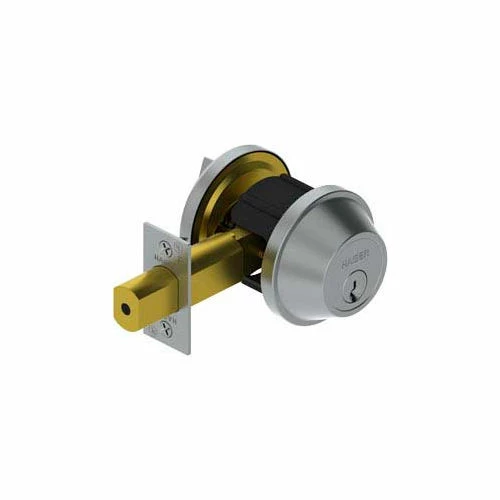

Hager Companies 3220 Grade 2 Deadlock – Thumbturn W/ Blank Plate 2-3/4" Adj Us32d

Features

• Lifetime warranty
• Non-handed
• Conventional cylinder or Small Format Interchangeable Core housing available
• Standard Door Prep: Cylinder Hole: 2-1/8 (54 mm) Diameter (Cross Bore), Latch Hole: 1 (25 mm) Diameter (Edge Bore)
• Certifications: BHMA Certified ANSI A156.5 Grade 2, ANSI A250.13 Severe Windstorm Resistant Component, UL/cUL Listed for all functions up to 3 hours for A label single doors, UL10C/UBC 7-2 (1997) Positive Pressure Rated, UL10B Neutral Pressure Rated, ADA Thumbturn
• Exposed Trim: Wrought Brass, Bronze or Stainless Steel
• Mechanism: Steel, zinc dichromate plating
• Keys: Two operating keys supplied per lock
• Cylinders/Cores: Brass – Keyed Different – C Keyway, Drilled 6-pin, keyed 5-pin – Standard Other keying options, including keyed 6-pin, available from the factory
• Small Format Interchangeable Core housing available, SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
• Door Thickness: 1-3/4 (45 mm) only – 3214 SFIC, 1-3/8 – 1-3/4 (35 mm – 45 mm) – Standard, 2 – 2-1/4 (51 mm – 57 mm) available for conventional cylinder – Must specify
• Backset: 2-3/4 (70 mm) – Standard, 2-3/8 (60 mm) – Optional, 2-3/8 – 2-3/4 adjustable backset supplied with 3220 and 3221 (not available on 3214 or 3215)
• Latchbolt: 1 (25 mm) Throw – Brass with concealed hardened steel roller to prevent sawing or cutting, 1-1/8 x 2-1/4 (29 mm x 57 mm) Square Corner Faceplate
• Functions 14 Double Cylinder, 15 Cylinder x Thumbturn, 20 Thumbturn w/ Blank Plate, 21 Thumbturn Only
• Finishes: US3, US4, US10, US10B, US26D, US32, US32D
• Notes: 3222 retrofit kit available for use with 3220/3221
• Options: Split finish, Additional deadbolts and strikes available
