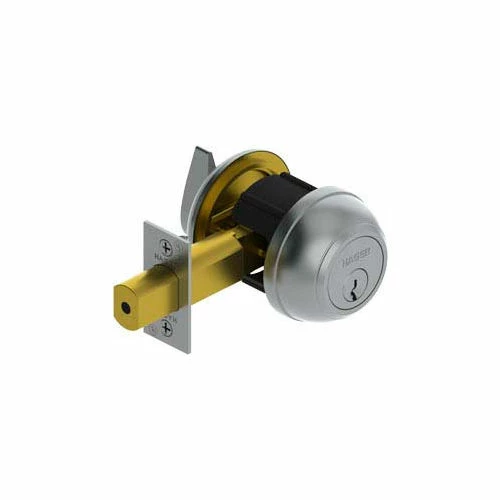

Hager Companies 3115 Grade 1 Deadlock – Cylinder X Thumbturn 2-3/4" Us3 Scc Kd

Features

• Lifetime warranty
• Non-handed
• Conventional cylinder or Small Format Interchangeable Core housing available
• Standard Door Prep: Cylinder Hole: 2-1/8 (54 mm) Diameter (Cross Bore)Latch Hole: 1 (25 mm) Diameter (Edge Bore)
• Certifications: BHMA Certified ANSI A156.5 Grade 1, ANSI A250.13 Severe Windstorm Resistant Component, UL/cUL Listed for all functions up to 3 hours for A label single doors, UL10C/UBC 7-2 (1997) Positive Pressure Rated, UL10B Neutral Pressure Rated, ADA – Thumbturn
• Exposed Trim: Wrought brass or bronze
• Mechanism: Steel, zinc dichromate plating
• Keys: Two operating keys supplied per lock
• Cylinders/Cores: Brass – Keyed Different – C Keyway, Drilled 6-pin, Keyed 5-pin – Standard, Other keying options, including keyed 6-pin, available from the factory
• Small Format Interchangeable Core housing available SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
• Door Thickness: 1-3/4 – 2 (45 mm – 51 mm) – Standard 2-1/4 (57 mm) available for conventional cylinder – Must specify
• Backset: 2-3/4 (70 mm) – Standard, 2-3/8 (60 mm) – Optional
• Latchbolt: 1 (25 mm) Throw – Brass with concealed hardened steel roller to prevent sawing or cutting, 1-1/8 x 2-1/4 (29 mm x 57 mm) Square Corner Faceplate
• Strikes:3930 Square Corner, 1-1/8 x 2-3/4 (29 mm x 70 mm) with dustbox – Standard, 3929 ASA Deadbolt Strike – Optional
• Functions: 14 Double Cylinder, 15 Cylinder x Thumbturn, 18 Classroom
• Finishes: US3, US4, US10, US10B, US26, US26D
• Options: Split finish, Additional deadbolts and strikes available
