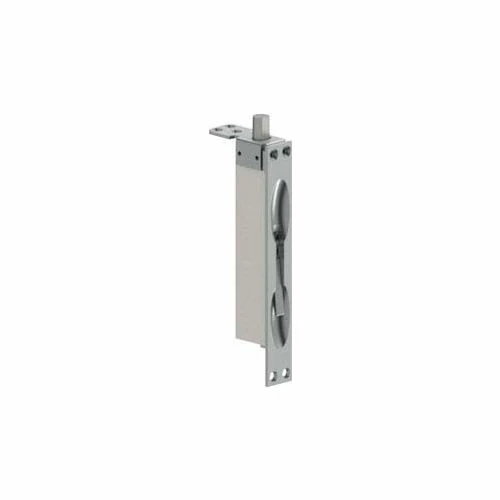

Hager Companies 283d Manual Flush Bolt Us26d

Features

• Certifications: Meets ANSI A156.16 for L14261
• Face Plate: 1 x 6-25/32 (25 mm x 172 mm)
• Bolt Head: 1/2 (13 mm) square
• Bolt Throw: 3/4 (19 mm)
• Bolt Backset: 3/4 (19 mm)
• Mortise Strike: 15/16 x 2-1/4 (24 mm x 57 mm)
• Materials: Brass faceplate with steel components
• Finishes: US3, US4, US5, US9, US10, US10B, US15, US15A, US19, US26, US26D
• Fasteners: Eight (8) #8 x 3/4 combo screws and eight (8) #8 x 1-1/2 combo screws
• Notes: For use on wood composite/ fire rated doors Non-handed Bolt head rods are adjustable 1-1/2 hour fire rating for wood doors up to 4 feet wide by 10 feet tall
