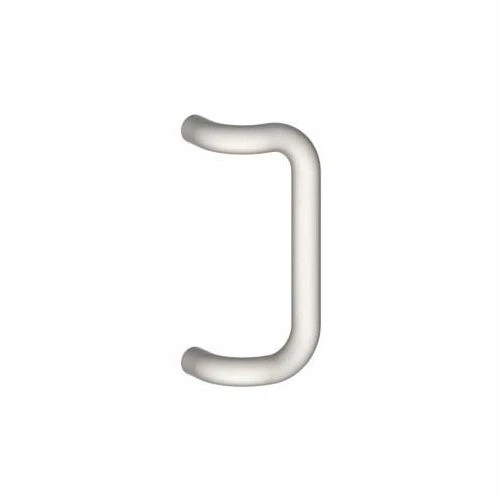

Hager Companies 12j Round Offset Pull 10" Us32d

Features

• Certification: Meets ANSI A156.6 for J402 Pulls
• Base Diameter: 1 (25 mm)
• Projection: 2-3/4 (70 mm)
• Offset: 3 (76 mm); 90° Standard
• Clearance: 1-3/4 (45 mm)
• Door Thickness: 1-3/4 (45 mm) – Standard
• Materials: Aluminum, brass, bronze, stainless steel
• Finishes: US3, US4, US10, US10B, US26, US26D, US28, US32, US32D
• Fasteners: Two (2) 5/16-18 thru-bolts with finish washers
• Handicap: 2-1/2 (64 mm) clearance available on special orders. Add prefix H to number (i.e., H12G)
• Options: For 45° offset, add prefix X to number (i.e., X12G) Other centers available on special orders If ordered with tempered glass, specify glass thickness and hole size
• Notes: For sizes or finishes not listed in this catalog
