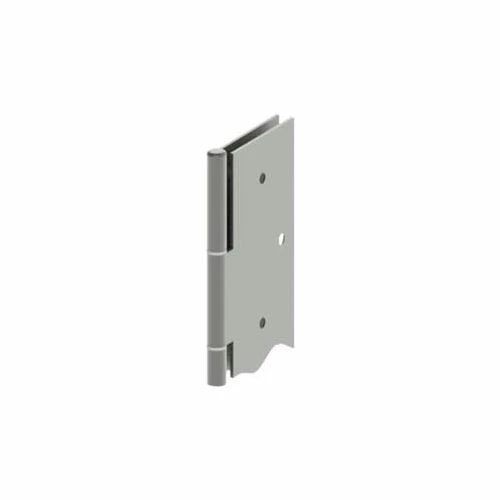

Hager 790-900 Concealed Leaf Hinge

Features:

• Concealed Leaf Hinge for Door of Any Material
• For doors 1-3/4″ (44 mm) thick and up to 600 pounds
• Material: 14 Ga. (0.075″ = 1.9 mm) Type 304 stainless steel
• Finish: US32D Satin
• Clearance: 7/32″ (5.6 mm) hinge side plus standard lockside clearance
• Fasteners: #10-24 x 5/8″ S/S Dril-Kwik” (metal frame/door); #10-16 x 1-1/4″ S/S Type AB (wood door)
• Length Options: Standard and custom
• Door/Frame Reinforcements: None required to 200 lbs, heavier weight use 16 gauge channel
• Fire Rating: Up to 3 hour metal and 90 minute wood composite
• 1/4″ (6.3 mm) diameter stainless steel pin
• Dual 6/6 nylon bearings between each knuckle
• May be used with beveled or square edge doors
