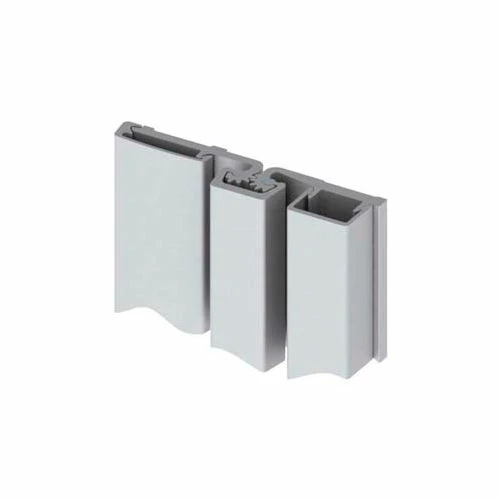

Hager 780-157 Standard Duty Full Surface Hinge – Fire Rated
Original price was: $176.95.$98.99Current price is: $98.99.
- Friendly, efficient service, always online.
- High quality products, low prices.
- Reliable Payments for Reliable Shopping
- Unbeatable Quality Guaranteed
Hager 780 Series hinge for medium frequency doors. Material: Aluminum 6063-T6 – 1/16″ (1.5 mm) nominal leaf thickness. Clearance: 1/32″ (1 mm) minimum recommended for hinge side plus standard lockside clearance. Fasteners: Dril-Kwik screws and sex bolts. 83″ length. Door Reinforcement: None required to 200 lbs, heavier weight use 16 gauge channel. Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs). Can be used with any door and frame material. Security molding.
| Length | 83 in |
|---|---|
| Manufacturers Part Number | XS1570830CLR000001 |
| Inset | 1/16" |
| Finish | Clear |
| Description | Fire-Rated Standard Duty Full Surface Hinge |
| Warranty | Lifetime yr |
