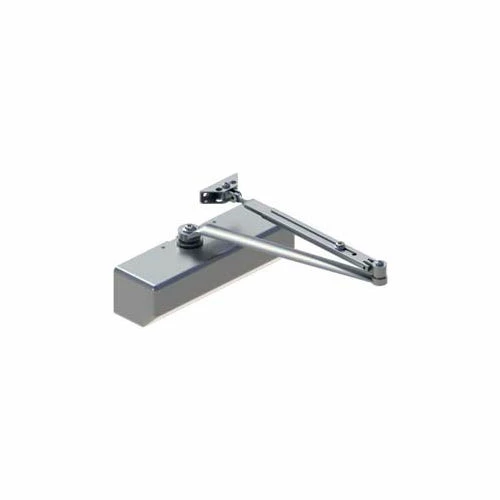

Hager 5300 Series Door Closer 5300 MLT 1-6 DBZ

Features:

• Heavy Duty Surface Door Closer
• Ideal for schools, hospitals, and other high-use environments
• Lifetime warranty
• Standard package contains 5301 closer body, 5302 closer cover, 5303 main arm assembly, 5304 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4″ door
• Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 – Standard
• ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 – Optional
• UL/cUL Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Material: Aluminum Alloy
• Cover: Full plastic cover and pinion cap
• Springs: Double heat treated steel, tempered springs
• Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve – Standard, Delayed action valve – Optional, Staked valves – Standard
• Handing: Non-handed
• Arms & Brackets: Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount – Standard, 15% power adjustment in standard arm for regular and top jamb mount
• Door Thickness: 1-3/4″ (44 mm), 1-3/8″ – 2-1/4″ (36 mm – 57 mm) Optional
• Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
• Finishes: ALM, BRZ, DBZ, GOL, Rust inhibiting primer – Standard
• Notes: Full rack and pinion operation, Precision machined, heat treated steel piston, Triple heat treated steel spindle
