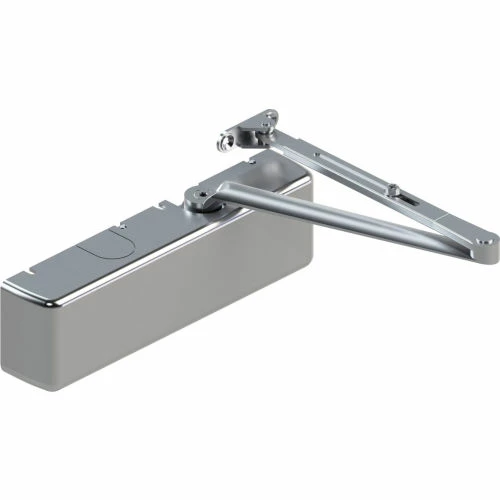

Hager 5100 Series Door Closer 5100 MLT 1-6 ALM

Features:

• Grade 1
• Heavy Duty Surface Door Closer
• Ideal for schools, hospitals, and other high-use environments
• Lifetime warranty
• Standard package contains 5101 closer body, 5102 closer cover, 5103 main arm assembly, 5104 standard screw pack, 5909 parallel arm bracket, and 5940 SNB screw pack for 1-3/4″ doors
• Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 – Standard
• ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 – Optional, UL/cUL Listed for up to 3 hours, UL10C Positive Pressure Rated, UL10B Neutral Pressure Rated
• Material: Cast Iron
• Cover: Full plastic cover – Standard, Plated metal cover – Optional
• Springs: One piece seamless steel spring tube, Double heat treated steel, tempered springs
• Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve – Standard, Delayed action valve – Optional,Staked valves – Standard
• Handing:Non-handed
• Arms & Brackets: Tri-Pack: Regular, Parallel Arm, Top Jamb Mount – Standard
• Door Thickness: 1-3/4″ (44 mm) – Standard, 1-3/8″ – 2-1/4″ thick door (36 mm – 57 mm) – Optional
• Fasteners: ALM, BRZ, DBZ, GOL, US3, US26, US26D,Rust inhibiting primer – Standard
• Notes: Full rack and pinion operation, Precision machined, heat treated steel piston, Triple heat treated steel spindle
