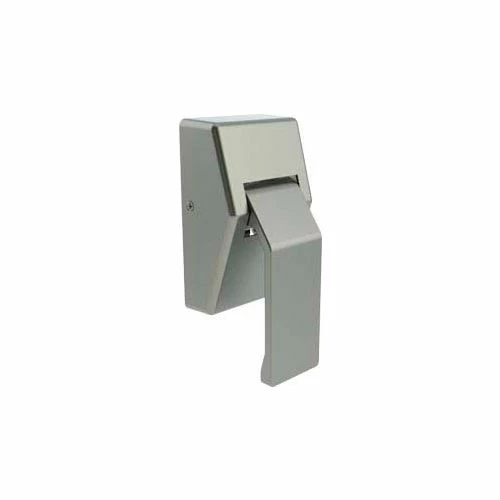

Hager 311h Push/Pull Latch 5" Us32d

Features

• Certifications: ANSI A156.2 Closest Equivalent(Bored Latch – Series 4000 – Grade 2)
• Push & Pull levers:1-15/16 x 4-1/2 (49 mm x 114 mm)
• Escutcheons:3-1/16 x 5 (78 mm x 127 mm)
• Projection:2-5/8 (67 mm)
• Bolt Throw: 1/2 (13 mm)
• Bolt Diameter:3/4 (19 mm)
• Backset: 2-3/4 (70 mm) – Standard 5 (127 mm) – Optional
• Strike (TEE) – standard:1-1/8 x 2-3/4 (29 mm x 70 mm)
• Strike (ASA) – standard:1-1/4 x 4-7/8 (32 mm x 124 mm)
• Door Thickness: 1-3/4 (45 mm)
• Materials: Zinc and stainless steel
• Finishes: US26, US26D, US32, US32D
• Notes: Non-handed, Engraving is optional
