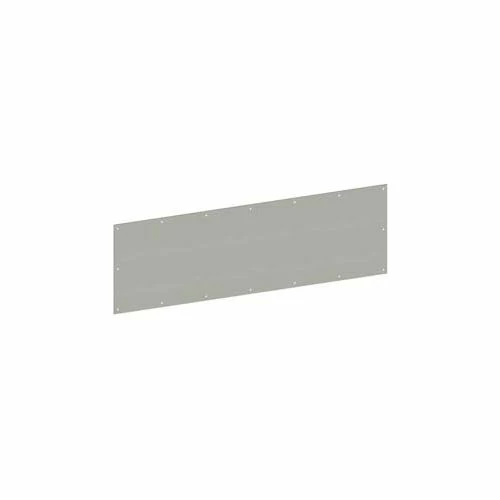

Hager 190s Door Protection Plate

Meets ANSI A156.6 for J101 Metal Armor Plate, J102 Metal Kickplate, and J103 Metal Mop Plate. Options include countersunk holes, UL armor plate stamped, self-adhesive tape, spanner head screws, torx head screws, round corners, wrap around side and bottom return, and 0.125″ material. Supplied standard with #6 x 5/8″ truss head screws (unless specified otherwise). Available in mop plate, kick plate, stretcher plate, and armor plate sizes.

Features:

• Mop Plate: Protects the bottom of the pull side of doors subject to cleaning and mopping procedures/li>
• Kick Plate: Protects the bottom of the push side of doors subject to scuffing from foot traffic.
• Stretcher Plate:Protects doors in specific areas where constant contact is made by stretchers, service carts, or other equipment.
• Armor Plate: Protects lower half of doors from abuse by carts, trucks, and rough usage.
• Gauge: 0.050″ (1.3 mm)
• Materials: Aluminum, brass, bronze, stainless steel
• Finishes: US3, US4, US10, US10B, US28, US32, US32D
• Bevel: None
• Notes: UL Listed for US32 and US32D only
