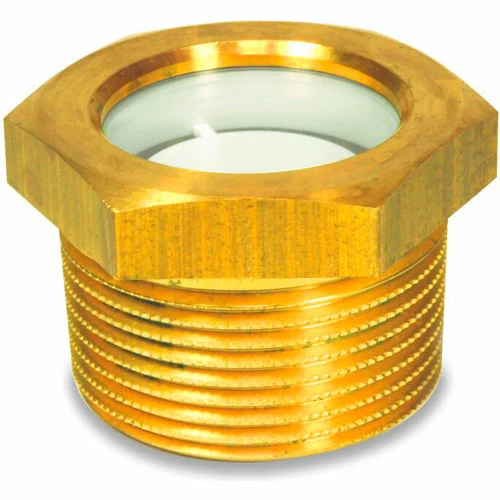

Brass Fluid Level Sight Glass w/o Reflector – R 3/8" Conical Thread – J.W. Winco 6CTK5
$16.00 Original price was: $16.00.$11.20Current price is: $11.20.
SKU: J.W. Winco WBB2225548 Categories: Door & Window Hardware, Viewers Tags: 0.053 TPI, Brass, Fasteners & Hardware, GN743.7, J.W. Winco, Natural Glass, NBR Rubber (Perbunan), R 3/8"
- Friendly, efficient service, always online.
- High quality products, low prices.
- Reliable Payments for Reliable Shopping
- Unbeatable Quality Guaranteed

The conical thread of GN 743.7 fluid level sight glasses makes a metallic seal possible. When the male thread is tightened, it wedges itself within the appropriate female thread. At the reference level “a,” the male thread has the same thread diameter as the female thread, so that it can be fastened in by hand. The secure tightening by means of a tool increases the length of engagement and seals the screw connection. Additionally a sealant (fibrous or teflon band) is usually used. The thread is “roughened,” so that the sealant does not shift during fastening. Fluid level sight glasses GN 743.7 can be used on pressurized oil tanks. Temperature resistant to 230° F (110° C).
| Thread Size | R 3/8 (Male/Female) in |
|---|---|
| Thread Pitch | 0.053 TPI |
| Manufacturers Part Number | 6CTK5 |
| Country of Origin | Import |
| Female Thread | R 3/8" |
| Sight Glass Body Material | Brass |
| Sight Glass Material | Natural Glass |
| Series | GN743.7 |
| Male Thread | R 3/8" |
| Across Flats | .75" (19mm) |
| O-Ring Material | NBR Rubber (Perbunan) |
| Diameter | .43" |
| Point to Point | .87" |
| Height | .24" |
| Thread Length | .59 in |
| Useable Thread | .40" |
| Brand | J.W. Winco |
