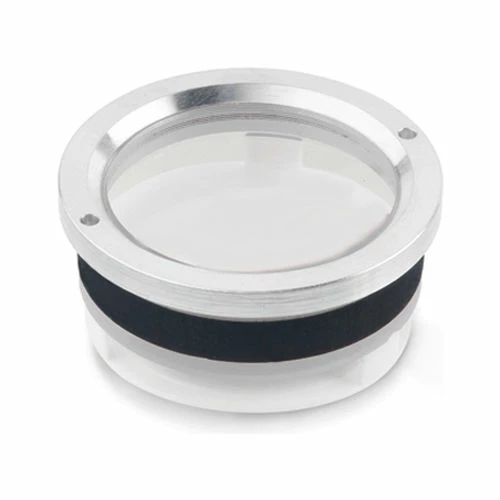

Aluminum Press Fit Fluid Level Sight Glass w/o Indicator – Fits 28mm (1.10") Bore – J.W. Winco RD2/A

Original price was: $34.95.Current price is: $24.47.

SKU: J.W. Winco WBB2225585 Categories: Door & Window Hardware, Viewers Tags: Aluminum, Fasteners & Hardware, GN537, Import, J.W. Winco, NBR Synthetic Rubber, Plexiglass (PMMA), Push-Fit (Pin Key Installed)

Friendly, efficient service, always online.
High quality products, low prices.
Reliable Payments for Reliable Shopping
Unbeatable Quality Guaranteed

No thread is required for installing the GN 537 fluid level sight glasses.The fluid level sight glass is inserted into the bore d2, tolerance H11. By simply tightening the ring nut using the pin key, the seal is pressed against the contact surface which, at the same time, holds the sight glass in position. For removal, reverse the procedure. Application is limited to non-pressurized or slightly pressurized tanks. Maximum heat resistance: 80° C (175° F).

Pin Diameter	3mm
Body Length	15mm in
Bore	28mm in
Indicator Mark	6mm
Height	4.5mm
Diameter	35mm
Window Glass	22mm
C to C Distance For Key	30mm
Series	GN537
Sight Glass Material	Plexiglass (PMMA)
Sight Glass Body Material	Aluminum
Mounting Location	Push-Fit (Pin Key Installed)
Country of Origin	Import
Seal Material	NBR Synthetic Rubber
Manufacturers Part Number	RD2/A
Brand	J.W. Winco
