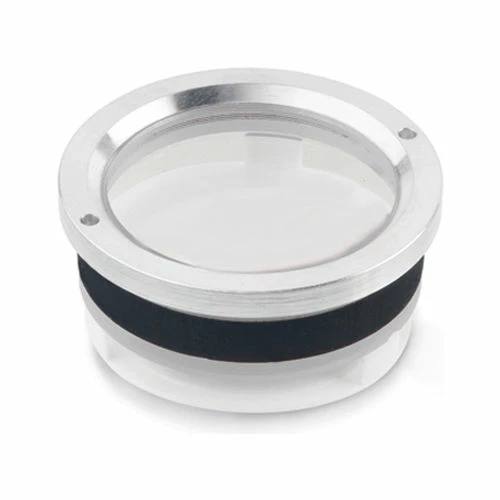

Aluminum Press Fit Fluid Level Sight Glass w/o Indicator – Fits 20mm (.79") Bore – J.W. Winco RD1/A

Original price was: $34.95.Current price is: $24.47.

SKU: J.W. Winco WBB2225546 Categories: Door & Window Hardware, Viewers Tags: Aluminum, Fasteners & Hardware, GN537, Import, J.W. Winco, NBR Synthetic Rubber, Plexiglass (PMMA), Push-Fit (Pin Key Installed)

Friendly, efficient service, always online.
High quality products, low prices.
Reliable Payments for Reliable Shopping
Unbeatable Quality Guaranteed

No thread is required for installing the GN 537 fluid level sight glasses.The fluid level sight glass is inserted into the bore d2, tolerance H11. By simply tightening the ring nut using the pin key, the seal is pressed against the contact surface which, at the same time, holds the sight glass in position. For removal, reverse the procedure. Application is limited to non-pressurized or slightly pressurized tanks. Maximum heat resistance: 80° C (175° F).

Pin Diameter	2.2mm
Body Length	15mm in
Bore	20mm in
Indicator Mark	5mm
Height	3.5mm
Diameter	25mm
Window Glass	16mm
C to C Distance For Key	21mm
Series	GN537
Sight Glass Material	Plexiglass (PMMA)
Sight Glass Body Material	Aluminum
Mounting Location	Push-Fit (Pin Key Installed)
Country of Origin	Import
Seal Material	NBR Synthetic Rubber
Manufacturers Part Number	RD1/A
Brand	J.W. Winco
