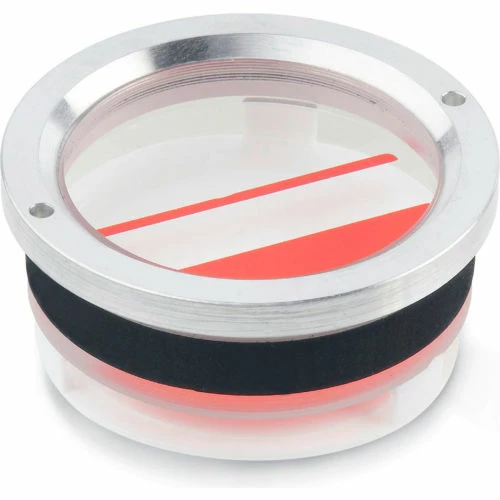

Aluminum Press Fit Fluid Level Sight Glass w/ Indicator – Fits 58mm (2.28") Bore – J.W. Winco RD3/B

Original price was: $36.95.Current price is: $25.87.

SKU: J.W. Winco WBB2225573 Categories: Door & Window Hardware, Viewers Tags: Aluminum, Fasteners & Hardware, GN537, Import, J.W. Winco, NBR Synthetic Rubber, Plexiglass (PMMA), Push-Fit (Pin Key Installed)

Friendly, efficient service, always online.
High quality products, low prices.
Reliable Payments for Reliable Shopping
Unbeatable Quality Guaranteed

No thread is required for installing the GN 537 fluid level sight glasses.The fluid level sight glass is inserted into the bore d2, tolerance H11. By simply tightening the ring nut using the pin key, the seal is pressed against the contact surface which, at the same time, holds the sight glass in position. For removal, reverse the procedure. Application is limited to non-pressurized or slightly pressurized tanks. Maximum heat resistance: 80° C (175° F).

Pin Diameter	3mm
Sight Glass Material	Plexiglass (PMMA)
Manufacturers Part Number	RD3/B
Reflector Material	White Plastic w/ Red Fluid Level Limit Indicators
Country of Origin	Import
Seal Material	NBR Synthetic Rubber
Mounting Location	Push-Fit (Pin Key Installed)
Sight Glass Body Material	Aluminum
Series	GN537
Body Length	18mm in
C to C Distance For Key	40mm
Window Glass	32mm
Diameter	45mm
Height	5.5mm
Indicator Mark	8mm
Bore	38mm in
Brand	J.W. Winco
