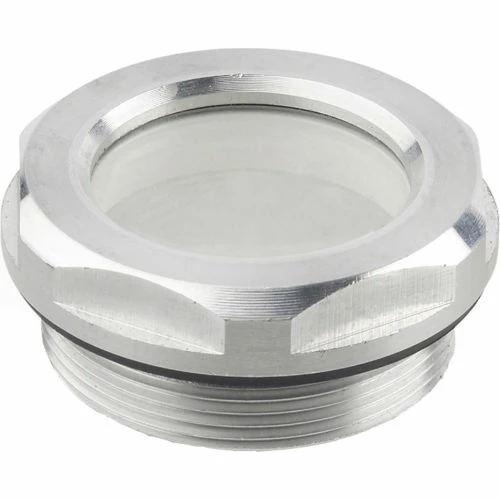

Aluminum Fluid Level Sight w/ ESG Glass w/o Reflector – G 1-1/4" Pipe Thread – J.W. Winco R32/B

Original price was: $34.95.Current price is: $24.47.

SKU: J.W. Winco WBB2225456 Categories: Door & Window Hardware, Viewers Tags: 743.1-32-G11/4-B, Aluminum w/ Matte Shot-Blast Finish, ESG Glass, Fasteners & Hardware, FPM Rubber (Viton®), GN743.1, Import, J.W. Winco

Friendly, efficient service, always online.
High quality products, low prices.
Reliable Payments for Reliable Shopping
Unbeatable Quality Guaranteed

Features:

Genuine glass of high stability and scratch proof.
Sealing with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.
The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal allows also the softer elastomer which guarantees better and easier sealing.
Fluid level sight glasses GN 743.1 can be used on pressurized oil tanks.
Viton seal: maximum heat resistance: 180° C (356° F).
When mounting oil level sight glasses on walls of less than 4mm thickness, use nut GN 543.1.

Thread Size	G 1-1/4 in
Across Flats	1.81" (46mm)
Inner Diameter	1.26"
Thread Length	.47 in
Height	.35"
Diameter	1.97"
Series	GN743.1
Sight Glass Material	ESG Glass
Sight Glass Body Material	Aluminum w/ Matte Shot-Blast Finish
Seal Material	FPM Rubber (Viton®)
Country of Origin	Import
Manufacturers Part Number	743.1-32-G11/4-B
Max Pressure @ 70°F	180 psi
Brand	J.W. Winco
