Air Louvers Steel Low Profile Slimline IG Vision Lite For 1" Glazing VSIG2424B 01, 24" X 24", Bronze

Original price was: $105.95.Current price is: $74.17.

SKU: Air Louvers WBB997923 Categories: Door Louver & Window Kits, Doors, Doors & Windows Tags: #8 X 1-1/4" Flathead Phillips SMS, 20 Gauge CRS Frame, Air Louvers, Bronze Powder Coated, Building Supplies, Low Profile Slimline IG Vision Lite For 1" Glazing, VSIG, VSIG 2424B 01

Friendly, efficient service, always online.
High quality products, low prices.
Reliable Payments for Reliable Shopping
Unbeatable Quality Guaranteed

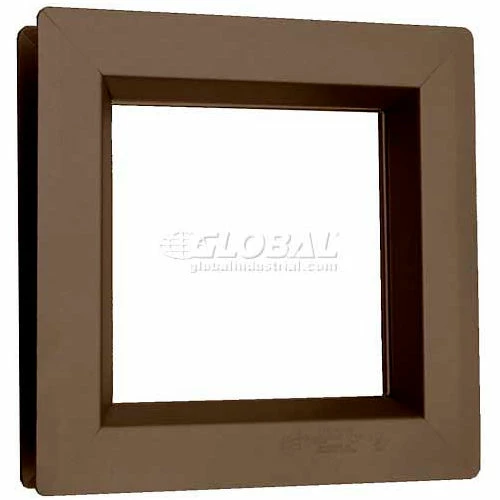

Steel Low Profile Slimline IG Vision Lite For 1″ Glazing VSIG2424B 01, 24″ X 24″, Bronze

VSIG – Slimline IG Vision Lite For 5/16″-1″ Glass

Low Profile Beveled IG Vision Lite for Fire Rated Doors. Glazing 5/16″ to 1″ Thickness.

Construction: 1-1/4″ trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.

Fire-Rating, Testing & Listings: When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

Max Size	60 X 104 in
Glass Thickness	5/16 – 1 in
Fits Door Thickness	For 1-3/4 Door in
Rough Opening	24 x 24 in
Min Size	3 X 3 in
Color Family	Bronze Powder Coated
Series	VSIG
Material	20 Gauge CRS Frame
Fasteners	#8 X 1-1/4" Flathead Phillips SMS
Description	Low Profile Slimline IG Vision Lite For 1" Glazing
Manufacturers Part Number	VSIG 2424B 01
Indoor/Outdoor	Interior
Brand	Air Louvers
Fire Rating	Up to 3 Hours
