Acudor Hinged Duct Access Door – 16 x 16
Original price was: $40.95.$28.67Current price is: $28.67.
- Friendly, efficient service, always online.
- High quality products, low prices.
- Reliable Payments for Reliable Shopping
- Unbeatable Quality Guaranteed

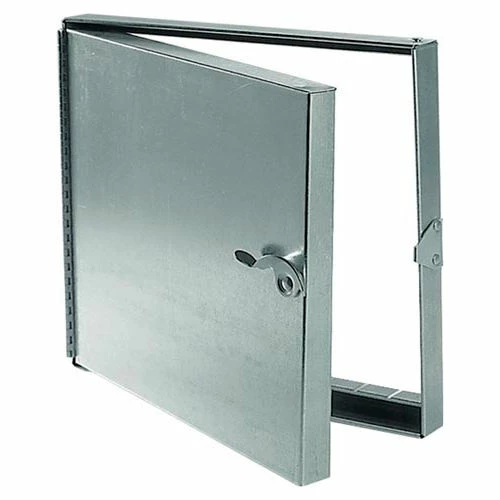

Constructed of a 24 gauge galvanized steel double panel door and frame with mill finish for long lasting durability. 1/8″ thick x 1/2″W closed cell neoprene gasketing between insulated door and frame assures tight seal without obstruction in air system. Frame includes 5/8″ notched knock over tabs. Door panel filled with 2″ fiberglass insulation compressed into 1″ and includes aluminum continuous piano hinge. 16″ W x 16″ H outside flange dimensions. 14-3/4″ W x 5/8″ D x 14-3/4″ H return flange dimensions. Color finish is Silver. Number of latches is 2.
| Overall Frame Height | 16 in |
|---|---|
| Weight | 5.25 lbs |
| Door Width | 16 in |
| Rough Opening | 14-3/4 X 14-3/4 in |
| Opening Width | 14-3/4 in |
| Door Height | 16 in |
| Overall Frame Width | 16 in |
| Opening Height | 5/8 in |
| Opening Depth | 14-3/4 in |
| Type | Hinged |
| Color Family | Silver |
| Number of Latches | 2 |
| Material | Galvanized Steel |
| Brand | Acudor |
